Fence and railing hardware · Base plates

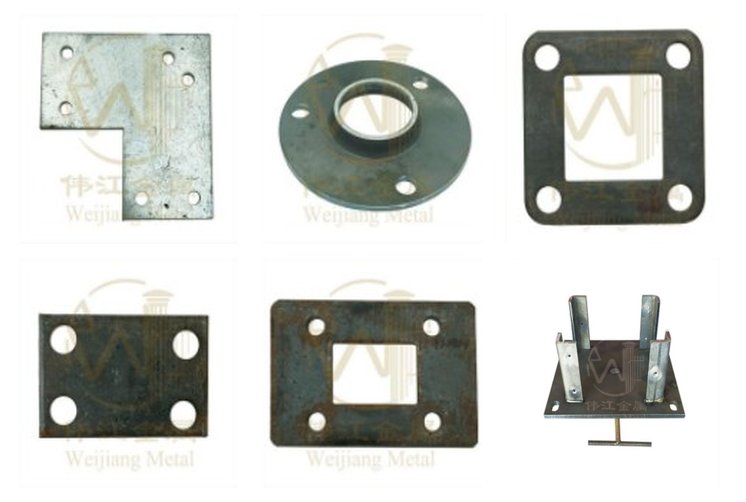

Base plates and post anchors

Name: Base plates and post anchors
Brand: EastCasting
SKU: DB

Product code DB

Square, rectangular and round base plates with bolt holes, plus welded post anchors and ground spikes, from 38×38 to 225×225 mm and 1.5 to 20 mm thick.

See all 74 models

Material	Steel plate; DB 1-072 is aluminium
Thickness	1.5–20 mm

Request a quote WhatsApp

Have a drawing? Attach it to your quote request.

74 models

Model	Size	Thickness	Weight	Material	Quote

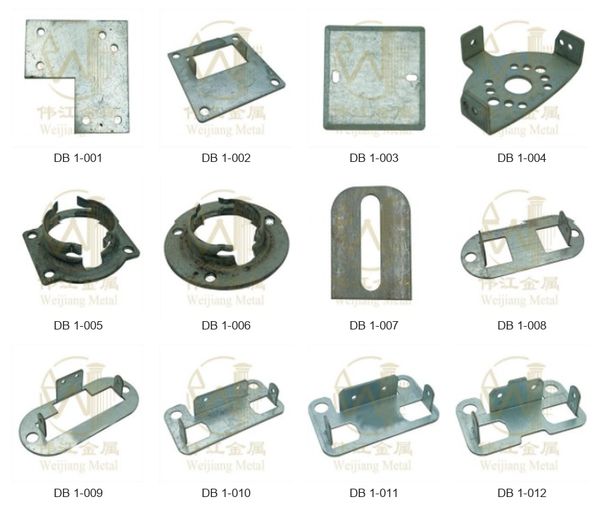

DB 1-001	L 47 × W 90 mm	4 mm	0.139 kg	Steel	Quote
DB 1-002	H 9.5 mm; ■/□ 25×44/68×68 mm	1.5 mm	0.049 kg	Steel	Quote
DB 1-003	L 78 × W 78 mm	0.3 mm	0.016 kg	Steel	Quote
DB 1-004	L 51 × W 70 × H 16 mm; Φ 14 mm	1.8 mm	0.039 kg	Steel	Quote
DB 1-005	●/□ 27/43×43 mm	1.5 mm	0.015 kg	Steel	Quote
DB 1-006	●/○ 27/51 mm	1.5 mm	0.02 kg	Steel	Quote
DB 1-007	■/□ 11×50/45×59 mm	2 mm	0.032 kg	Steel	Quote
DB 1-008	L 155 × W 66 × H 27 mm; □ 30×30 ×2 mm	2 mm	0.121 kg	Steel	Quote
DB 1-009	L 142 × W 62 × H 25 mm; □ 26×95 mm	2 mm	0.093 kg	Steel	Quote
DB 1-010	L 120 × W 60 × H 24 mm; □ 20×24 ×2 mm	2 mm	0.093 kg	Steel	Quote
DB 1-011	L 110 × W 65 × H 25 mm; □ 20×25 ×2 mm	2 mm	0.083 kg	Steel	Quote
DB 1-012	L 100 × W 60 × H 27 mm; □ 20×25 ×2 mm	2 mm	0.068 kg	Steel	Quote

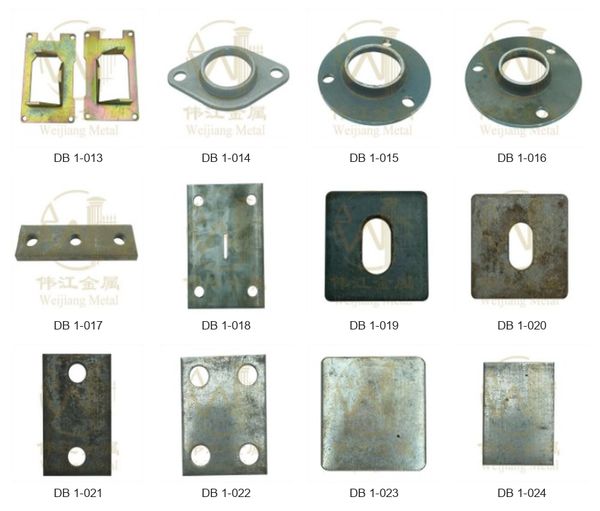

DB 1-013	L 82 × W 133 mm	3.5 mm	0.255 kg	Steel	Quote
DB 1-014	L 128 × W 81 × H 15 mm; Φ 47 mm	5 mm	0.21 kg	Steel	Quote
DB 1-015	H 16 mm; ●/○ 60/130 mm	4.7 mm	0.406 kg	Steel	Quote
DB 1-016	H 18 mm; ●/○ 49/129 mm	4.5 mm	0.42 kg	Steel	Quote
DB 1-017	L 123 × W 39 × H 10 mm		0.347 kg	Steel	Quote
DB 1-018	L 100 × W 150 mm	4.7 mm	0.498 kg	Steel	Quote
DB 1-019	□ 38.5×38.5 mm			Steel	Quote
DB 1-020	□ 44×44 mm			Steel	Quote
DB 1-021	□ 49×81 mm			Steel	Quote
DB 1-022	□ 60×78 mm			Steel	Quote
DB 1-023	□ 67×67 mm			Steel	Quote
DB 1-024	□ 60×80 mm			Steel	Quote

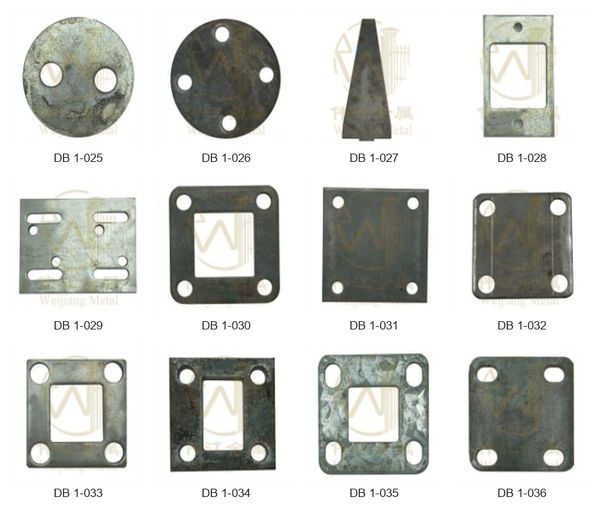

DB 1-025	Φ 65 mm			Steel	Quote
DB 1-026	Φ 100 mm			Steel	Quote
DB 1-027	L 105 × W 304 mm			Steel	Quote
DB 1-028	□ 105×170 mm	8 mm		Steel	Quote
DB 1-029	□ 150×197 mm			Steel	Quote
DB 1-030	□ 100×100 mm			Steel	Quote
DB 1-031	□ 160×160 mm			Steel	Quote
DB 1-032	□ 75×75 mm			Steel	Quote
DB 1-033	□ 77×77 mm			Steel	Quote
DB 1-034	□ 80×80 mm			Steel	Quote
DB 1-035	□ 90×90 mm			Steel	Quote
DB 1-036	□ 90×90 mm			Steel	Quote

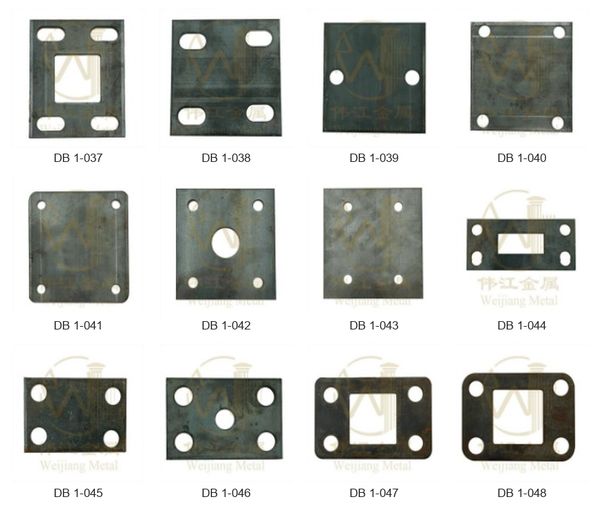

DB 1-037	□ 85×100 mm			Steel	Quote
DB 1-038	□ 100×100 mm			Steel	Quote
DB 1-039	□ 100×100 mm			Steel	Quote
DB 1-040	□ 110×110 mm			Steel	Quote
DB 1-041	□ 120×120 mm			Steel	Quote
DB 1-042	□ 125×125 mm			Steel	Quote
DB 1-043	□ 150×150 mm			Steel	Quote
DB 1-044	□ 50×120 mm			Steel	Quote
DB 1-045	□ 59×90 mm			Steel	Quote
DB 1-046	□ 60×90 mm			Steel	Quote
DB 1-047	□ 65×101 mm			Steel	Quote
DB 1-048	□ 67×93 mm			Steel	Quote

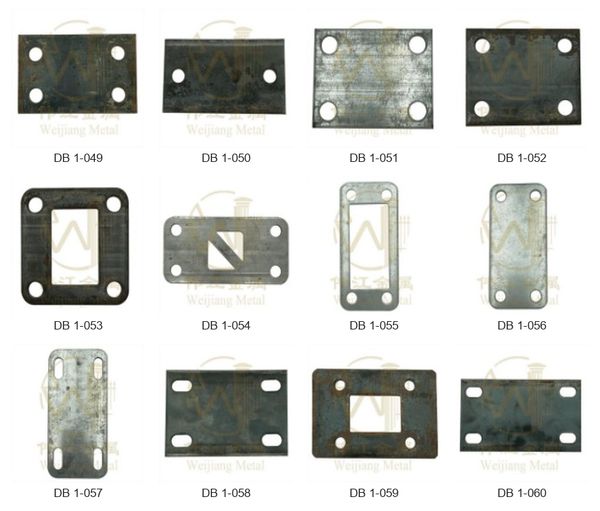

DB 1-049	□ 73×111 mm			Steel	Quote
DB 1-050	□ 70×120 mm			Steel	Quote
DB 1-051	□ 78×100 mm			Steel	Quote
DB 1-052	□ 80×100 mm			Steel	Quote
DB 1-053	□ 93×93 mm			Steel	Quote
DB 1-054	□ 90×180 mm			Steel	Quote
DB 1-055	□ 90×180 mm			Steel	Quote
DB 1-056	□ 90×180 mm			Steel	Quote
DB 1-057	□ 90×180 mm			Steel	Quote
DB 1-058	□ 100×150 mm			Steel	Quote
DB 1-059	□ 100×150 mm			Steel	Quote
DB 1-060	□ 100×180 mm			Steel	Quote

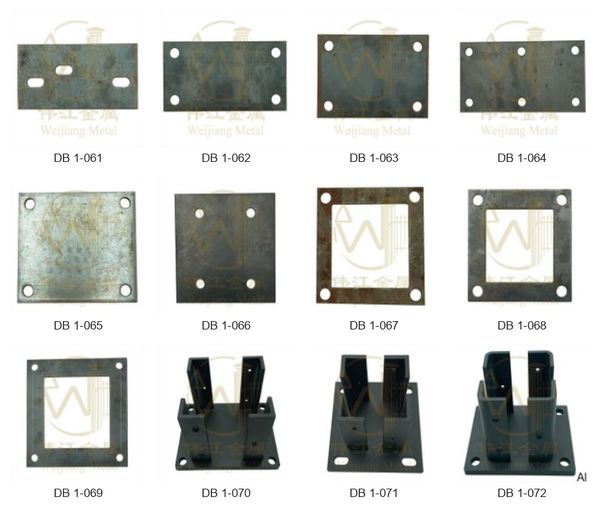

DB 1-061	□ 100×207 mm			Steel	Quote
DB 1-062	□ 105×210 mm			Steel	Quote
DB 1-063	□ 120×180 mm			Steel	Quote
DB 1-064	□ 120×240 mm			Steel	Quote
DB 1-065	□ 130×150 mm			Steel	Quote
DB 1-066	□ 150×150 mm			Steel	Quote
DB 1-067	□ 140×140 mm			Steel	Quote
DB 1-068	□ 148×148 mm			Steel	Quote
DB 1-069	□ 225×225 mm			Steel	Quote
DB 1-070	H 108 mm; □ 130×165 mm			Steel	Quote
DB 1-071	H 108 mm; □ 140×140 mm			Steel	Quote
DB 1-072	H 100 mm; □ 100×130 mm		0.478 kg	Aluminium	Quote
DB 2-001	H 505 mm; □ 130×130 mm	5 mm		Steel	Quote
DB 2-002	□ 25×25 mm	8 mm		Steel	Quote
