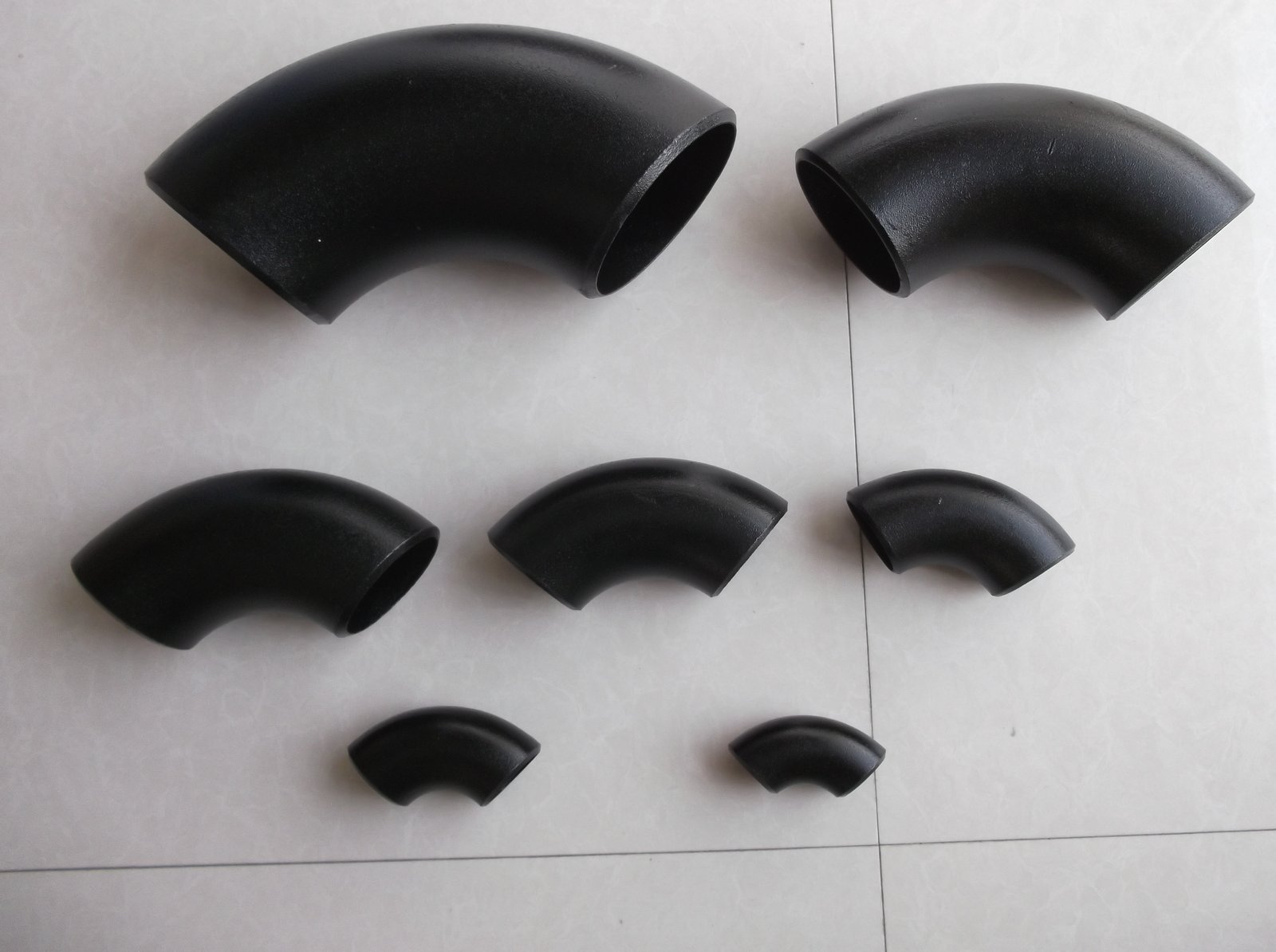

Butt-weld 90° elbows, assorted sizes

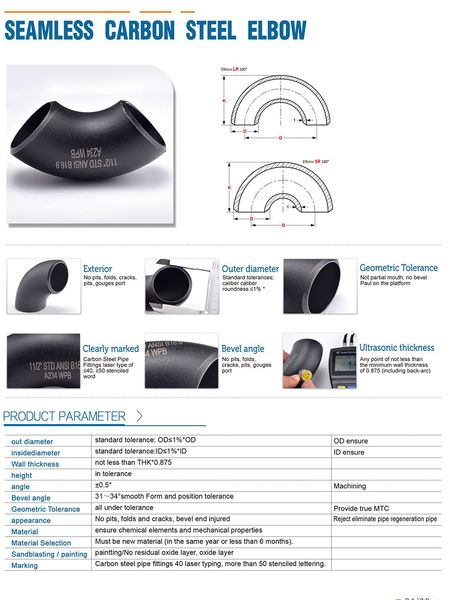

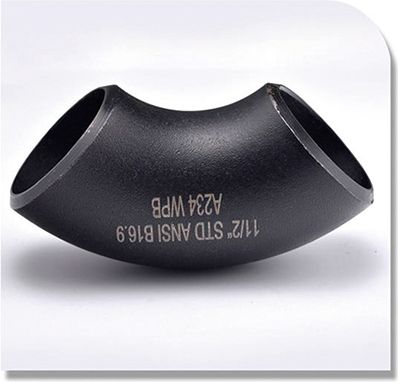

Butt-weld 90° elbows shown in several sizes, each a curved pipe section with plain open ends, used to change direction in welded pipelines. Quality limits: outside diameter within ±1%, wall thickness at least 87.5% of nominal, 31–34° bevel ends, no pits, folds or cracks. Made from new material (less than 6 months old), marked on every piece and supplied with a mill test certificate (MTC).

Have a drawing? Attach it to your quote request.
