Stamped steel brackets

Name: Stamped steel brackets
Brand: EastCasting
SKU: LJJ B 1

Product code LJJ B 1

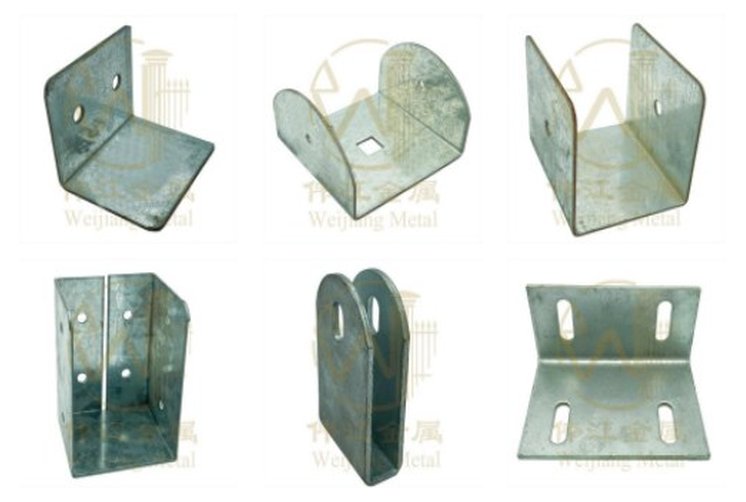

L brackets, U brackets, post saddles and angle plates pressed from steel sheet, 0.7 to 5.7 mm thick. 120 models for fixing rails, panels and posts. We can also make brackets to your drawing.

See all 120 models

Material	Steel sheet
Thickness	0.7–5.7 mm

Request a quote WhatsApp

Have a drawing? Attach it to your quote request.

120 models

Model	Size	Thickness	Weight	Material	Quote

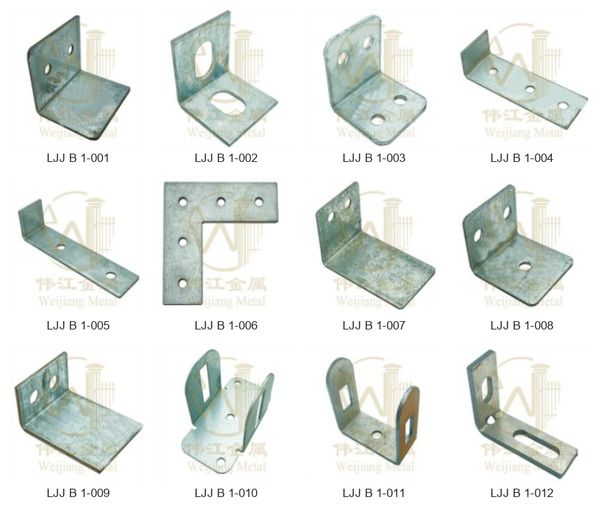

LJJ B 1-001	L 52 × W 45 × H 37 mm	1.5 mm	0.037 kg	Steel	Quote
LJJ B 1-002	L 35 × W 13 × H 35 mm	2.5 mm	0.035 kg	Steel	Quote
LJJ B 1-003	L 30 × W 30 × H 30 mm	2.0 mm	0.024 kg	Steel	Quote
LJJ B 1-004	L 56 × W 20 × H 13.5 mm	0.7 mm	0.009 kg	Steel	Quote
LJJ B 1-005	L 60 × W 15 × H 15 mm	1.0 mm	0.008 kg	Steel	Quote
LJJ B 1-006	L 60 × W 60 mm	2.0 mm	0.029 kg	Steel	Quote
LJJ B 1-007	L 40 × W 25 × H 25 mm	1.0 mm	0.012 kg	Steel	Quote
LJJ B 1-008	L 32 × W 30 × H 24.5 mm	1.5 mm	0.018 kg	Steel	Quote
LJJ B 1-009	L 40 × W 30 × H 19.5 mm	2.0 mm	0.025 kg	Steel	Quote
LJJ B 1-010	L 80 × W 40 × H 45 mm	1.5 mm	0.066 kg	Steel	Quote
LJJ B 1-011	L 41.5 × W 20 × H 44 mm	2.0 mm	0.034 kg	Steel	Quote
LJJ B 1-012	L 48 × W 16.5 × H 36 mm	3.0 mm	0.024 kg	Steel	Quote

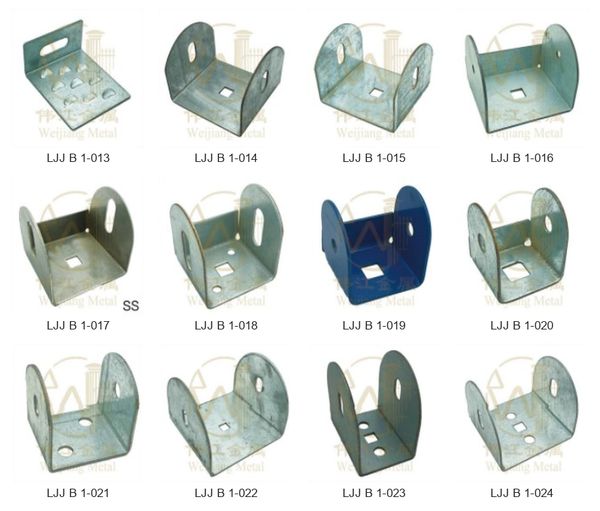

LJJ B 1-013	L 36 × W 30 × H 16 mm	0.7 mm	0.011 kg	Steel	Quote
LJJ B 1-014	L 61 × W 60 × H 45 mm	1.5 mm	0.088 kg	Steel	Quote
LJJ B 1-015	L 60 × W 63 × H 45 mm	1.5 mm	0.094 kg	Steel	Quote
LJJ B 1-016	L 56 × W 51 × H 44 mm	1.5 mm	0.088 kg	Steel	Quote
LJJ B 1-017	L 51 × W 51 × H 44 mm	1.2 mm	0.065 kg	Stainless steel	Quote
LJJ B 1-018	L 41 × W 41 × H 45 mm	1.5 mm	0.06 kg	Steel	Quote
LJJ B 1-019	L 34 × W 32 × H 37 mm	1.5 mm	0.035 kg	Steel	Quote
LJJ B 1-020	L 26 × W 26 × H 31 mm	1.2 mm	0.021 kg	Steel	Quote
LJJ B 1-021	L 21 × W 21 × H 24 mm	1.2 mm	0.016 kg	Steel	Quote
LJJ B 1-022	L 21 × W 30 × H 40 mm	1.5 mm	0.017 kg	Steel	Quote
LJJ B 1-023	L 46 × W 44 × H 40 mm	1.5 mm	0.05 kg	Steel	Quote
LJJ B 1-024	L 30 × W 50 × H 40 mm	1.5 mm	0.037 kg	Steel	Quote

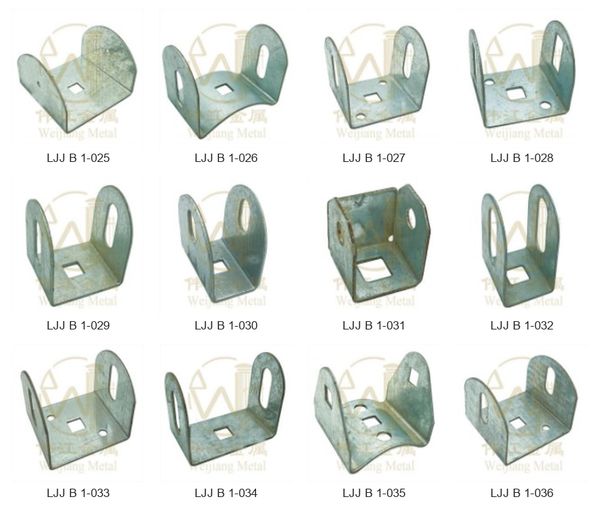

LJJ B 1-025	L 56 × W 56 × H 35 mm	1.5 mm	0.072 kg	Steel	Quote
LJJ B 1-026	L 62 × W 41 × H 43 mm	1.5 mm	0.058 kg	Steel	Quote
LJJ B 1-027	L 42 × W 40 × H 40 mm	1.5 mm	0.032 kg	Steel	Quote
LJJ B 1-028	L 40 × W 39 × H 35 mm	1.5 mm	0.032 kg	Steel	Quote
LJJ B 1-029	L 36 × W 35 × H 41 mm	1.5 mm	0.038 kg	Steel	Quote
LJJ B 1-030	L 20 × W 40 × H 40 mm	2.0 mm	0.049 kg	Steel	Quote
LJJ B 1-031	L 20 × W 20 × H 24 mm	1.2 mm	0.016 kg	Steel	Quote
LJJ B 1-032	L 20 × W 30 × H 40 mm	1.5 mm	0.018 kg	Steel	Quote
LJJ B 1-033	L 45 × W 45 × H 40 mm	1.5 mm	0.05 kg	Steel	Quote
LJJ B 1-034	L 50 × W 30 × H 40 mm	1.5 mm	0.074 kg	Steel	Quote
LJJ B 1-035	L 52 × W 50 × H 45 mm	1.8 mm	0.076 kg	Steel	Quote
LJJ B 1-036	L 50 × W 50 × H 40 mm	1.5 mm	0.063 kg	Steel	Quote

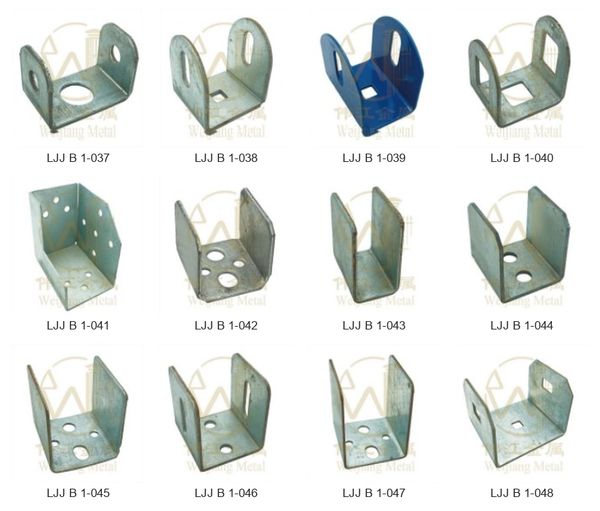

LJJ B 1-037	L 42 × W 30 × H 31 mm	3.0 mm	0.055 kg	Steel	Quote
LJJ B 1-038	L 40 × W 40 × H 47 mm	3.0 mm	0.104 kg	Steel	Quote
LJJ B 1-039	L 30 × W 50 × H 40 mm	1.5 mm	0.054 kg	Steel	Quote
LJJ B 1-040	L 20 × W 20 × H 25 mm	1.5 mm	0.011 kg	Steel	Quote
LJJ B 1-041	L 59 × W 41 × H 59 mm	1.5 mm	0.115 kg	Steel	Quote
LJJ B 1-042	L 25 × W 28 × H 25 mm	1.5 mm	0.023 kg	Steel	Quote
LJJ B 1-043	L 16 × W 30 × H 34 mm	2.0 mm	0.037 kg	Steel	Quote
LJJ B 1-044	L 27 × W 31 × H 30 mm	1.5 mm	0.035 kg	Steel	Quote
LJJ B 1-045	L 32 × W 36 × H 34 mm	1.8 mm	0.044 kg	Steel	Quote
LJJ B 1-046	L 30 × W 35 × H 35 mm	2.0 mm	0.049 kg	Steel	Quote
LJJ B 1-047	L 32 × W 35 × H 40 mm	1.5 mm	0.042 kg	Steel	Quote
LJJ B 1-048	L 60 × W 58 × H 43 mm	2.0 mm	0.14 kg	Steel	Quote

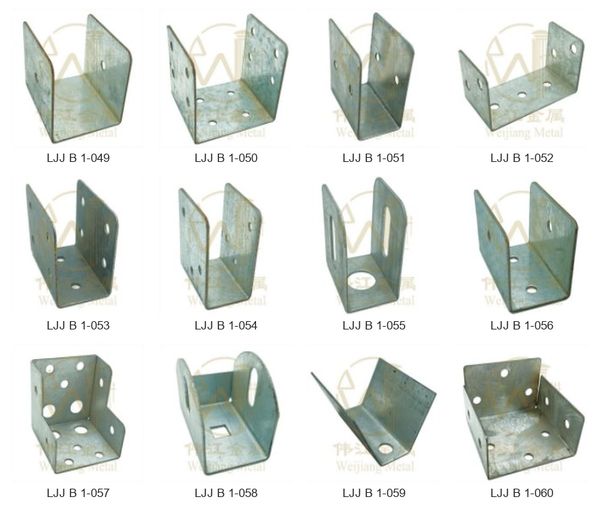

LJJ B 1-049	L 40 × W 50 × H 44 mm	1.2 mm	0.058 kg	Steel	Quote
LJJ B 1-050	L 52 × W 48 × H 50 mm	1.5 mm	0.085 kg	Steel	Quote
LJJ B 1-051	L 26 × W 48 × H 51 mm	1.0 mm	0.047 kg	Steel	Quote
LJJ B 1-052	L 55 × W 30 × H 30 mm	1.2 mm	0.03 kg	Steel	Quote
LJJ B 1-053	L 26 × W 50 × H 41 mm	1.2 mm	0.048 kg	Steel	Quote
LJJ B 1-054	L 22 × W 40 × H 44 mm	1.5 mm	0.049 kg	Steel	Quote
LJJ B 1-055	L 24 × W 36 × H 45 mm	1.2 mm	0.037 kg	Steel	Quote
LJJ B 1-056	L 27 × W 50 × H 35 mm	1.5 mm	0.052 kg	Steel	Quote
LJJ B 1-057	L 40 × W 42 × H 21.5 mm	1.0 mm	0.043 kg	Steel	Quote
LJJ B 1-058	L 30 × W 50 × H 40 mm	1.5 mm	0.062 kg	Steel	Quote
LJJ B 1-059	L 18 × W 58 × H 34 mm	1.0 mm	0.047 kg	Steel	Quote
LJJ B 1-060	L 50 × W 48 × H 35 mm	1.0 mm	0.05 kg	Steel	Quote

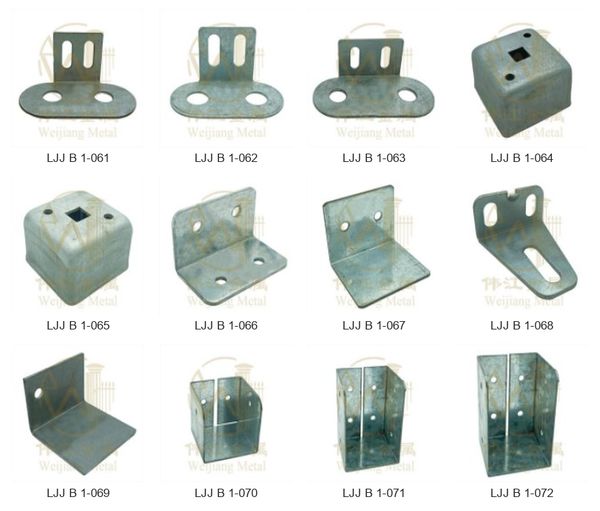

LJJ B 1-061	L 49 × W 42 × H 36 mm	1.8 mm	0.05 kg	Steel	Quote
LJJ B 1-062	L 69 × W 35 × H 35 mm	1.5 mm	0.03 kg	Steel	Quote
LJJ B 1-063	L 90 × W 41 × H 31 mm	1.5 mm	0.062 kg	Steel	Quote
LJJ B 1-064	L 40 × W 40 × H 26 mm	0.7 mm	0.025 kg	Steel	Quote
LJJ B 1-065	L 36 × W 36 × H 27 mm	1.8 mm	0.055 kg	Steel	Quote
LJJ B 1-066	L 50 × W 50 × H 30 mm	2.0 mm	0.042 kg	Steel	Quote
LJJ B 1-067	L 45 × W 45 × H 36 mm	1.5 mm	0.034 kg	Steel	Quote
LJJ B 1-068	L 70 × W 70 × H 36 mm	4.5 mm	0.149 kg	Steel	Quote
LJJ B 1-069	L 50 × W 50 × H 38 mm	2.0 mm	0.066 kg	Steel	Quote
LJJ B 1-070	L 50 × W 50 × H 51 mm	1.5 mm	0.114 kg	Steel	Quote
LJJ B 1-071	L 50 × W 50 × H 76 mm	1.5 mm	0.155 kg	Steel	Quote
LJJ B 1-072	L 50 × W 50 × H 100 mm	1.5 mm	0.195 kg	Steel	Quote

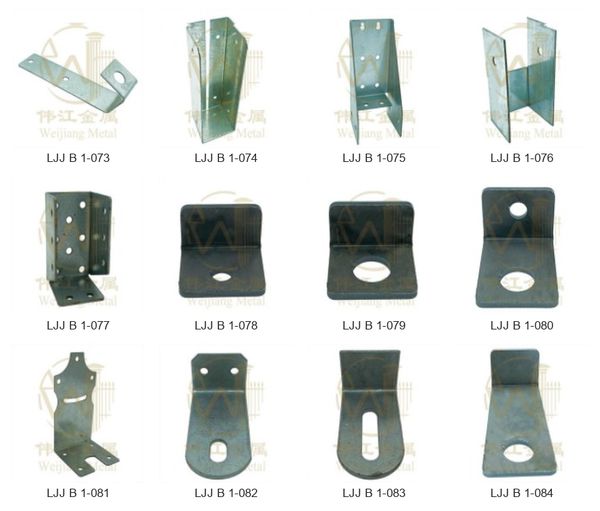

LJJ B 1-073	L 130 × W 29 mm	1.5 mm	0.054 kg	Steel	Quote
LJJ B 1-074	L 50 × W 50 × H 151 mm	1.5 mm	0.283 kg	Steel	Quote
LJJ B 1-075	L 50 × W 50 × H 119 mm	1.5 mm	0.156 kg	Steel	Quote
LJJ B 1-076	L 40 × W 40 × H 80 mm	1.5 mm	0.089 kg	Steel	Quote
LJJ B 1-077	L 50 × W 52 × H 97 mm	3.5 mm	0.298 kg	Steel	Quote
LJJ B 1-078	L 45 × W 50 × H 30 mm	4.0 mm	0.096 kg	Steel	Quote
LJJ B 1-079	L 45 × W 50 × H 30 mm	4.0 mm	0.089 kg	Steel	Quote
LJJ B 1-080	L 65 × W 50 × H 40 mm	4.0 mm	0.129 kg	Steel	Quote
LJJ B 1-081	L 72 × W 70 × H 134 mm	1.0 mm	0.01 kg	Steel	Quote
LJJ B 1-082	L 40 × W 80 × H 30 mm	3.0 mm	0.075 kg	Steel	Quote
LJJ B 1-083	L 71 × W 40 × H 34 mm	3.0 mm	0.08 kg	Steel	Quote
LJJ B 1-084	L 50 × W 123 × H 40 mm	4.0 mm	0.217 kg	Steel	Quote

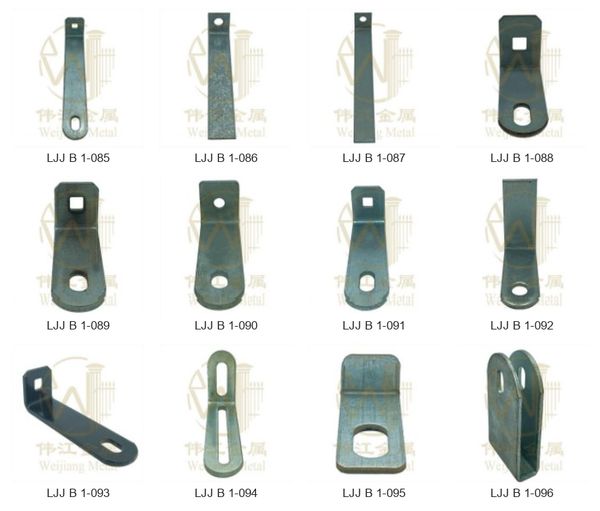

LJJ B 1-085	L 29 × W 170 × H 33 mm	4.0 mm	0.166 kg	Steel	Quote
LJJ B 1-086	L 30 × W 170 × H 30 mm	3.0 mm	0.127 kg	Steel	Quote
LJJ B 1-087	L 30 × W 220 × H 35 mm	3.0 mm	0.17 kg	Steel	Quote
LJJ B 1-088	L 30 × W 70 × H 40 mm	3.0 mm	0.058 kg	Steel	Quote
LJJ B 1-089	L 30 × W 80 × H 34 mm	4.0 mm	0.083 kg	Steel	Quote
LJJ B 1-090	L 30 × W 90 × H 34 mm	4.0 mm	0.096 kg	Steel	Quote
LJJ B 1-091	L 30 × W 97 × H 35 mm	4.0 mm	0.1 kg	Steel	Quote
LJJ B 1-092	L 30 × W 80 × H 65 mm	3.6 mm	0.11 kg	Steel	Quote
LJJ B 1-093	L 30 × W 110 × H 33 mm	3.8 mm	0.106 kg	Steel	Quote
LJJ B 1-094	L 32 × W 120 × H 60 mm	5.0 mm	0.159 kg	Steel	Quote
LJJ B 1-095	L 25 × W 60 × H 18 mm	2.8 mm	0.033 kg	Steel	Quote
LJJ B 1-096	L 25 × W 60 × H 100 mm	4.0 mm	0.35 kg	Steel	Quote

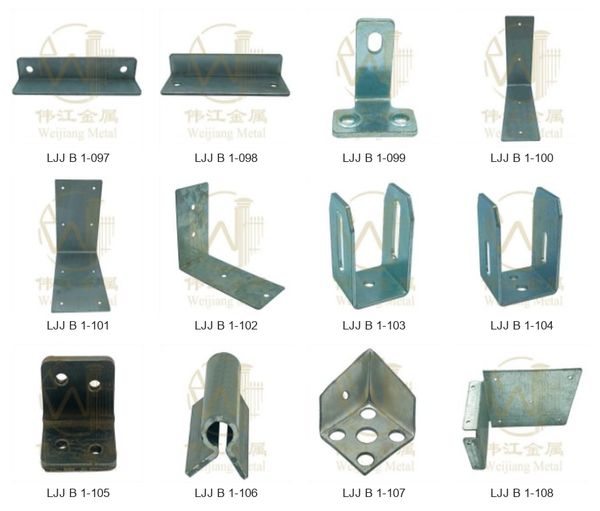

LJJ B 1-097	L 150 × W 30 × H 30 mm	3.0 mm	0.19 kg	Steel	Quote
LJJ B 1-098	L 150 × W 30 × H 30 mm	3.0 mm	0.26 kg	Steel	Quote
LJJ B 1-099	L 58 × W 40 × H 58 mm	4.0 mm	0.085 kg	Steel	Quote
LJJ B 1-100	L 40 × W 100 × H 100 mm	0.7 mm	0.04 kg	Steel	Quote
LJJ B 1-101	L 60 × W 100 × H 100 mm	0.7 mm	0.06 kg	Steel	Quote
LJJ B 1-102	L 46 × W 110 × H 88 mm	0.7 mm	0.048 kg	Steel	Quote
LJJ B 1-103	L 34 × W 30 × H 52 mm	2.2 mm	0.056 kg	Steel	Quote
LJJ B 1-104	L 45 × W 38 × H 63 mm	2.8 mm	0.119 kg	Steel	Quote
LJJ B 1-105	L 40 × W 40 × H 40 mm	4.8 mm	0.1 kg	Steel	Quote
LJJ B 1-106	L 27 × W 50 × H 29 mm	2.5 mm	0.067 kg	Steel	Quote
LJJ B 1-107	L 58 × W 79 × H 25 mm	2.0 mm	0.049 kg	Steel	Quote
LJJ B 1-108	L 110 × W 127 × H 95 mm	2.5 mm	0.594 kg	Steel	Quote

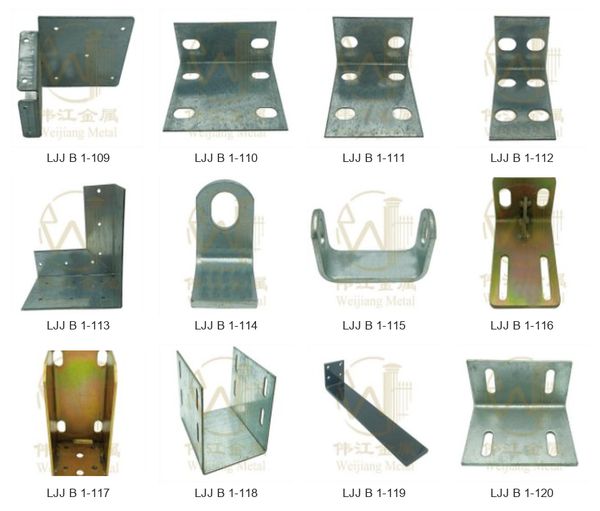

LJJ B 1-109	L 112 × W 117 × H 79 mm	2.0 mm	0.303 kg	Steel	Quote
LJJ B 1-110	L 135 × W 155 × H 70 mm	2.5 mm	0.553 kg	Steel	Quote
LJJ B 1-111	L 105 × W 123 × H 72 mm	2.5 mm	0.357 kg	Steel	Quote
LJJ B 1-112	L 66 × W 115 × H 70 mm	2.5 mm	0.194 kg	Steel	Quote
LJJ B 1-113	L 150 × W 100 × H 150 mm	2.5 mm	0.786 kg	Steel	Quote
LJJ B 1-114	L 40 × W 60 × H 60 mm	5.7 mm	0.165 kg	Steel	Quote
LJJ B 1-115	L 100 × W 60 × H 60 mm	5.7 mm	0.298 kg	Steel	Quote
LJJ B 1-116	L 78 × W 128 × H 68 mm	4.5 mm	0.472 kg	Steel	Quote
LJJ B 1-117	L 88 × W 83 × H 172 mm	3.5 mm		Steel	Quote
LJJ B 1-118	L 110 × W 138 × H 130 mm	2.75 mm	1.017 kg	Steel	Quote
LJJ B 1-119	L 40 × W 200 × H 45 mm	5.0 mm	0.334 kg	Steel	Quote
LJJ B 1-120	L 150 × W 110 × H 78 mm	5.0 mm	0.982 kg	Steel	Quote
