Rail end brackets

Name: Rail end brackets
Brand: EastCasting
SKU: LJJ GDZ 1

Product code LJJ GDZ 1

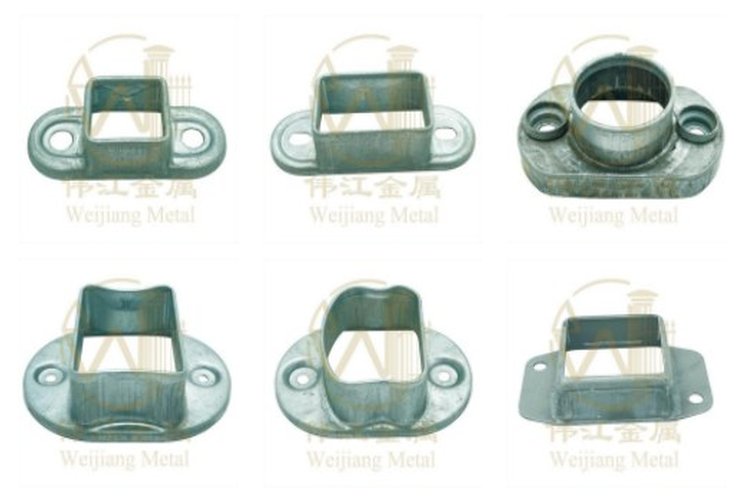

Flanged sleeves that hold the end of a square, rectangular, oval or round rail and screw to a post or wall. 59 models for square, rectangular, oval and round rails.

See all 59 models

Material	Steel sheet; a few in stainless steel
Thickness	0.7–2.0 mm

Request a quote WhatsApp

Have a drawing? Attach it to your quote request.

59 models

Model	Size	Thickness	Weight	Material	Quote

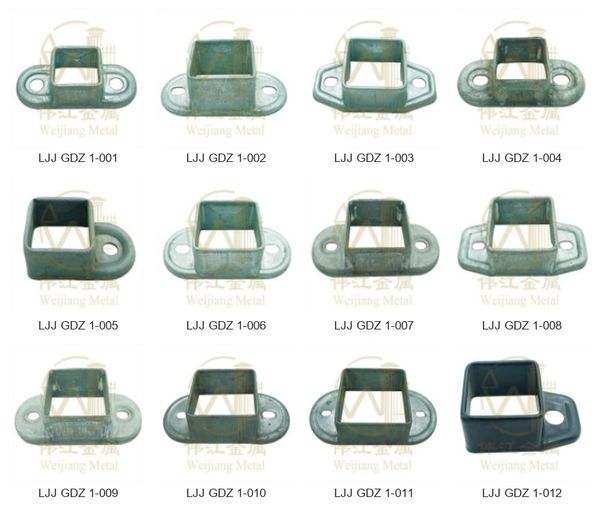

LJJ GDZ 1-001	H 16 mm; □ 20×20 mm	1.0 mm	0.016 kg	Steel	Quote
LJJ GDZ 1-002	H 25 mm; □ 32×32 mm	1.0 mm	0.039 kg	Steel	Quote
LJJ GDZ 1-003	H 25 mm; □ 32×32 mm	1.0 mm	0.039 kg	Steel	Quote
LJJ GDZ 1-004	H 25 mm; □ 32×32 mm	1.0 mm	0.039 kg	Steel	Quote
LJJ GDZ 1-005	H 20 mm; □ 25×25 mm	1.2 mm	0.029 kg	Steel	Quote
LJJ GDZ 1-006	H 29 mm; □ 35×35 mm	1.5 mm	0.067 kg	Steel	Quote
LJJ GDZ 1-007	H 28 mm; □ 40×40 mm	1.5 mm	0.07 kg	Steel	Quote
LJJ GDZ 1-008	H 28 mm; □ 40×40 mm	1.5 mm	0.07 kg	Steel	Quote
LJJ GDZ 1-009	H 31 mm; □ 42×42 mm	1.5 mm	0.082 kg	Steel	Quote
LJJ GDZ 1-010	H 28 mm; □ 45×45 mm	0.7 mm	0.042 kg	Steel	Quote
LJJ GDZ 1-011	H 33 mm; □ 60×60 mm	0.7 mm	0.08 kg	Steel	Quote
LJJ GDZ 1-012	H 29 mm; □ 40×40 mm	1.2 mm	0.065 kg	Steel	Quote

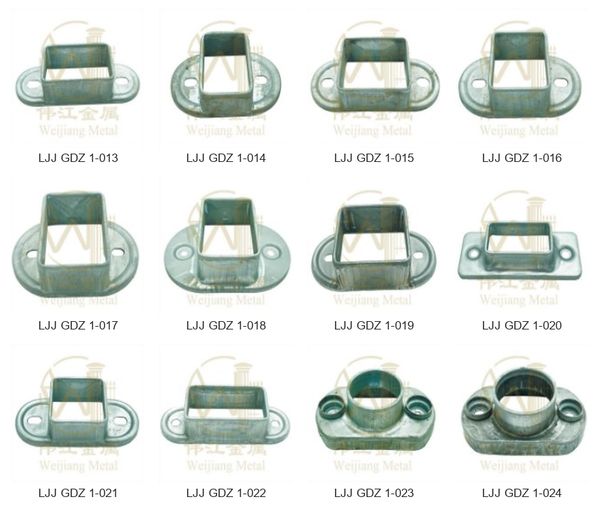

LJJ GDZ 1-013	H 24 mm; □ 25×40 mm	0.7 mm	0.026 kg	Steel	Quote
LJJ GDZ 1-014	H 25 mm; □ 25×40 mm	0.7 mm	0.04 kg	Steel	Quote
LJJ GDZ 1-015	H 26 mm; □ 35×40 mm	0.7 mm	0.033 kg	Steel	Quote
LJJ GDZ 1-016	H 26 mm; □ 30×40 mm	0.7 mm	0.034 kg	Steel	Quote
LJJ GDZ 1-017	H 30 mm; □ 40×60 mm	1.2 mm	0.095 kg	Steel	Quote
LJJ GDZ 1-018	H 36 mm; □ 40×60 mm	0.7 mm	0.066 kg	Steel	Quote
LJJ GDZ 1-019	H 35 mm; □ 50×50 mm	0.7 mm	0.069 kg	Steel	Quote
LJJ GDZ 1-020	H 24 mm; □ 20×40 mm	0.7 mm	0.03 kg	Steel	Quote
LJJ GDZ 1-021	H 23 mm; □ 30×30 mm	0.7 mm	0.025 kg	Steel	Quote
LJJ GDZ 1-022	H 23 mm; □ 25×50 mm	0.7 mm	0.028 kg	Steel	Quote
LJJ GDZ 1-023	H 34 mm; Φ 32 mm	0.7 mm	0.043 kg	Steel	Quote
LJJ GDZ 1-024	H 35 mm; Φ 38 mm	0.7 mm	0.051 kg	Steel	Quote

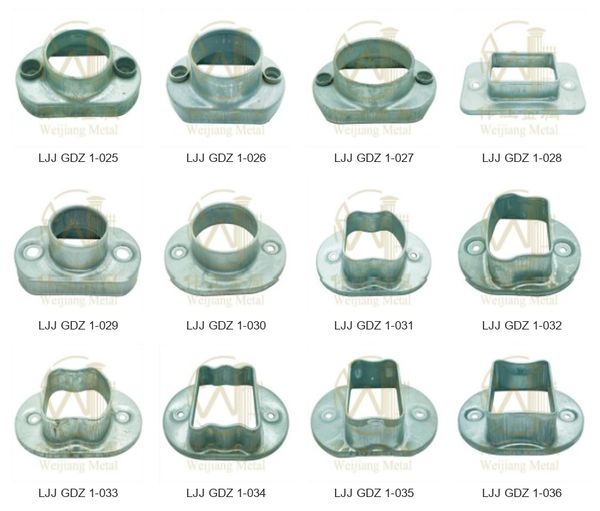

LJJ GDZ 1-025	H 38 mm; Φ 48 mm	1.2 mm	0.115 kg	Steel	Quote
LJJ GDZ 1-026	H 52 mm; Φ 60 mm	1.2 mm	0.13 kg	Steel	Quote
LJJ GDZ 1-027	H 43 mm; Φ 76 mm	1.2 mm	0.158 kg	Steel	Quote
LJJ GDZ 1-028	H 21 mm; □ 30×50 mm	0.7 mm	0.044 kg	Steel	Quote
LJJ GDZ 1-029	H 35 mm; Φ 32 mm	0.7 mm	0.038 kg	Steel	Quote
LJJ GDZ 1-030	H 30 mm; Φ 48 mm	0.7 mm	0.054 kg	Steel	Quote
LJJ GDZ 1-031	H 33 mm; □ 55×51 mm	0.7 mm	0.057 kg	Steel	Quote
LJJ GDZ 1-032	H 30 mm; □ 42×62 mm	0.7 mm	0.093 kg	Steel	Quote
LJJ GDZ 1-033	H 33 mm; □ 52×51 mm	0.7 mm	0.062 kg	Steel	Quote
LJJ GDZ 1-034	H 28 mm; □ 53×45 mm	0.7 mm	0.074 kg	Steel	Quote
LJJ GDZ 1-035	H 36 mm; □ 61×39 mm	0.7 mm	0.063 kg	Steel	Quote
LJJ GDZ 1-036	H 37 mm; □ 70×48 mm	0.7 mm	0.079 kg	Steel	Quote

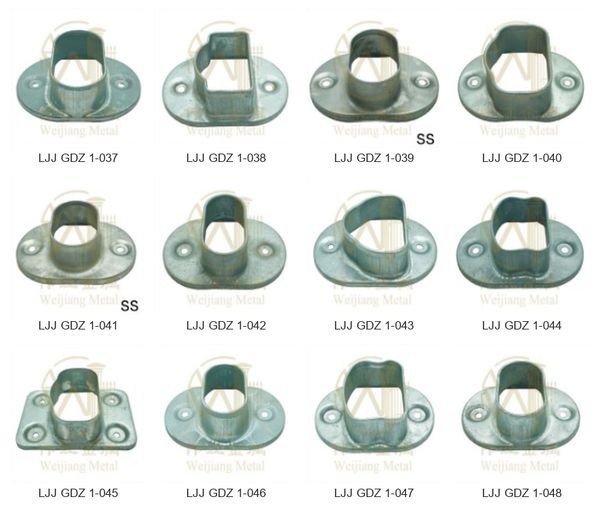

LJJ GDZ 1-037	H 33 mm; □ 40×80 mm	0.7 mm	0.067 kg	Steel	Quote
LJJ GDZ 1-038	H 36 mm; □ 40×60 mm	0.7 mm	0.065 kg	Steel	Quote
LJJ GDZ 1-039	H 30 mm; □ 34×59 mm	0.7 mm	0.038 kg	Stainless steel	Quote
LJJ GDZ 1-040	H 35 mm; □ 70×48 mm	0.7 mm	0.359 kg	Steel	Quote
LJJ GDZ 1-041	H 33 mm; □ 35×55 mm	0.7 mm	0.038 kg	Stainless steel	Quote
LJJ GDZ 1-042	H 36 mm; □ 30×60 mm	0.7 mm	0.061 kg	Steel	Quote
LJJ GDZ 1-043	H 31 mm; □ 62×46 mm	0.7 mm	0.07 kg	Steel	Quote
LJJ GDZ 1-044	H 35 mm; □ 40×55 mm	0.7 mm	0.057 kg	Steel	Quote
LJJ GDZ 1-045	H 34 mm; □ 70×45 mm	0.7 mm	0.093 kg	Steel	Quote
LJJ GDZ 1-046	H 34 mm; □ 30×55 mm	0.7 mm	0.055 kg	Steel	Quote
LJJ GDZ 1-047	H 31 mm; □ 54×42 mm	0.7 mm	0.046 kg	Steel	Quote
LJJ GDZ 1-048	H 31 mm; □ 30×55 mm	0.7 mm	0.047 kg	Steel	Quote

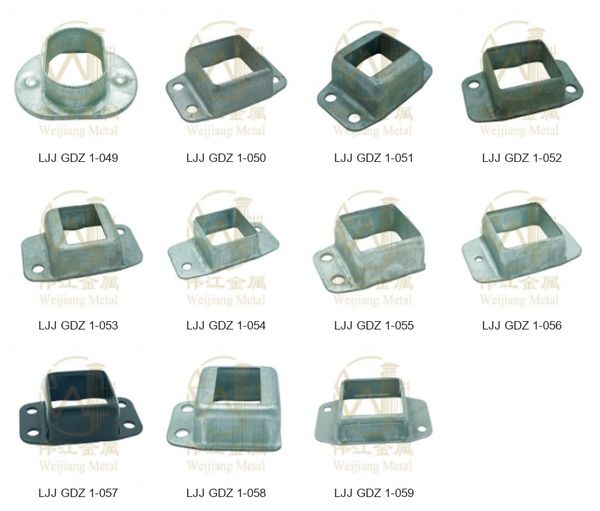

LJJ GDZ 1-049	H 34 mm; □ 65×45 mm	0.7 mm	0.061 kg	Steel	Quote
LJJ GDZ 1-050	H 23 mm; □ 40×40 mm	1.8 mm	0.065 kg	Steel	Quote
LJJ GDZ 1-051	H 26 mm; □ 38×25 mm	1.8 mm	0.078 kg	Steel	Quote
LJJ GDZ 1-052	H 22 mm; □ 40×40 mm	1.8 mm	0.065 kg	Steel	Quote
LJJ GDZ 1-053	H 24 mm; □ 26×39 mm	1.8 mm	0.075 kg	Steel	Quote
LJJ GDZ 1-054	H 26 mm; □ 40×40 mm	1.8 mm	0.078 kg	Steel	Quote
LJJ GDZ 1-055	H 24 mm; □ 40×40 mm	1.8 mm	0.06 kg	Steel	Quote
LJJ GDZ 1-056	H 23 mm; □ 40×40 mm	1.8 mm	0.065 kg	Steel	Quote
LJJ GDZ 1-057	H 25 mm; □ 40×40 mm	2.0 mm	0.072 kg	Steel	Quote
LJJ GDZ 1-058	H 26 mm; □ 39×26 mm	1.8 mm	0.073 kg	Steel	Quote
LJJ GDZ 1-059	H 25 mm; □ 50×50 mm	1.5 mm	0.087 kg	Steel	Quote
