Fence and railing hardware · Base covers

Post base covers

Name: Post base covers
Brand: EastCasting
SKU: ZSG F 1

Product code ZSG F 1

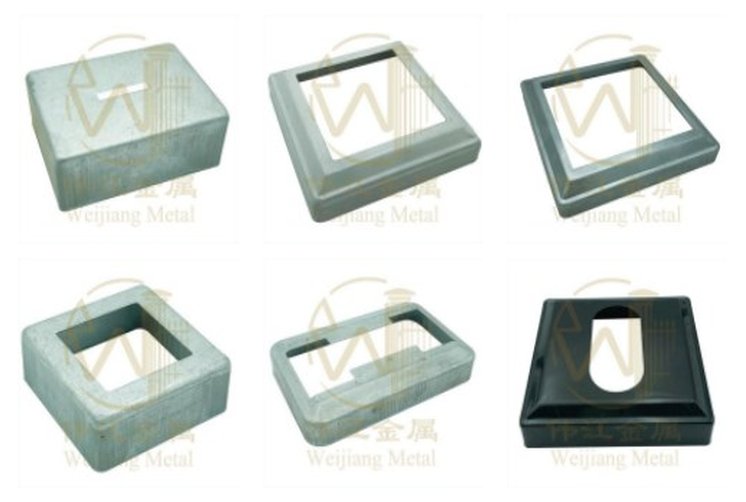

One-piece covers that slide down a square or rectangular post to hide the base plate and bolts, for posts up to 200×200 mm. In the table, ■ is the post size and □ is the outer size.

See all 63 models

Material	Steel sheet; two in aluminium
Thickness	0.7–1.5 mm

Request a quote WhatsApp

Have a drawing? Attach it to your quote request.

63 models

Model	Size	Thickness	Weight	Material	Quote

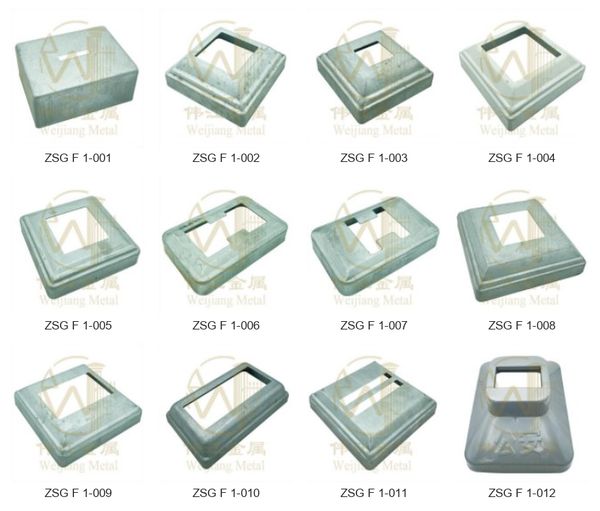

ZSG F 1-001	H 31 mm; ■/□ 4×25/60×80 mm	0.7 mm	0.064 kg	Steel	Quote
ZSG F 1-002	H 26 mm; ■/□ 40×40/80×80 mm	0.7 mm	0.046 kg	Steel	Quote
ZSG F 1-003	H 27 mm; ■/□ 25×25/80×80 mm	0.7 mm	0.051 kg	Steel	Quote
ZSG F 1-004	H 30 mm; ■/□ 60×60/100×100 mm	0.7 mm	0.074 kg	Steel	Quote
ZSG F 1-005	H 21 mm; ■/□ 45×45/90×90 mm	0.7 mm	0.057 kg	Steel	Quote
ZSG F 1-006	H 21 mm; ■/□ 42×78/75×105 mm	0.7 mm	0.058 kg	Steel	Quote
ZSG F 1-007	H 21 mm; ■/□ 46×51/75×115 mm	0.7 mm	0.064 kg	Steel	Quote
ZSG F 1-008	H 27 mm; ■/□ 50×50/120×120 mm	0.7 mm	0.093 kg	Steel	Quote
ZSG F 1-009	H 27 mm; □ 120×120 mm; ■/□ 50×80/120×120 mm	0.7 mm	0.86 kg	Steel	Quote
ZSG F 1-010	H 40 mm; □ 125×210 mm; ■/□ 62×162/125×210 mm	0.7 mm	0.165 kg	Steel	Quote
ZSG F 1-011	H 28 mm; ■/□ (10×80)×2/120×120 mm	0.7 mm	0.098 kg	Steel	Quote
ZSG F 1-012	H 149 mm; ■/□ 80×130/310×405 mm			Steel	Quote

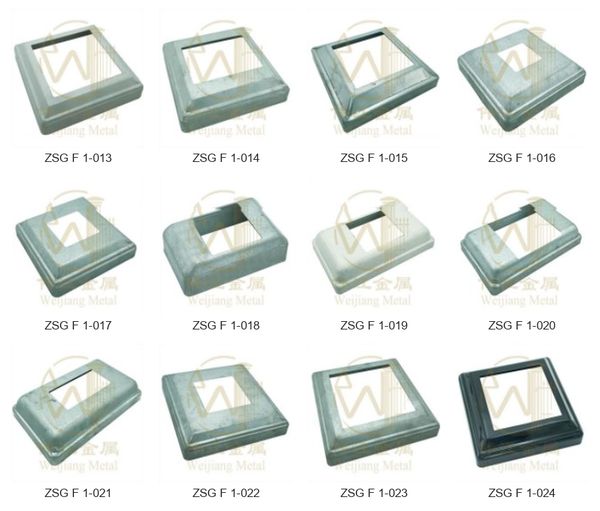

ZSG F 1-013	H 32 mm; ■/□ 100×100/150×150 mm	0.7 mm	0.139 kg	Steel	Quote
ZSG F 1-014	H 26 mm; ■/□ 60×80/120×120 mm	0.7 mm	0.083 kg	Steel	Quote
ZSG F 1-015	H 29 mm; ■/□ 89×89/140×140 mm	1 mm	0.161 kg	Steel	Quote
ZSG F 1-016	H 28 mm; ■/□ 40×40/120×120 mm	0.7 mm	0.104 kg	Steel	Quote
ZSG F 1-017	H 27 mm; ■/□ 50×50/120×120 mm	0.7 mm	0.097 kg	Steel	Quote
ZSG F 1-018	H 16 mm; ■/□ 26×26/33×55 mm	0.7 mm	0.016 kg	Steel	Quote
ZSG F 1-019	H 40 mm; ■/□ 80×80/124×210 mm	1 mm	0.209 kg	Steel	Quote
ZSG F 1-020	H 40 mm; ■/□ 100×100/124×210 mm	0.7 mm	0.179 kg	Steel	Quote
ZSG F 1-021	H 40 mm; ■/□ 50×100/124×210 mm	0.7 mm	0.189 kg	Steel	Quote
ZSG F 1-022	H 33 mm; ■/□ 80×80/185×185 mm	0.7 mm	0.23 kg	Steel	Quote
ZSG F 1-023	H 33 mm; ■/□ 120×120/185×185 mm	0.7 mm	0.188 kg	Steel	Quote
ZSG F 1-024	H 28 mm; ■/□ 75×75/120×120 mm	1 mm	0.093 kg	Steel	Quote

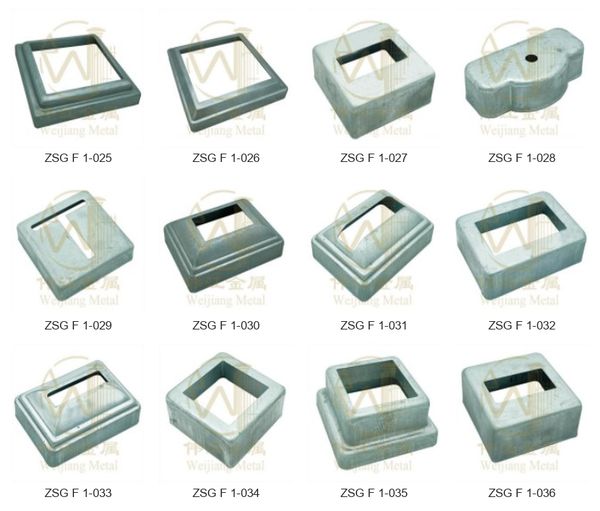

ZSG F 1-025	H 43 mm; ■/□ 150×150/200×200 mm	0.7 mm	0.258 kg	Steel	Quote
ZSG F 1-026	H 47 mm; ■/□ 200×200/280×280 mm	0.7 mm	0.377 kg	Steel	Quote
ZSG F 1-027	H 25 mm; ■/□ 20×40/60×60 mm	0.7 mm	0.039 kg	Steel	Quote
ZSG F 1-028	H 19 mm; ●/□ 7/35×70 mm	0.7 mm	0.027 kg	Steel	Quote
ZSG F 1-029	H 17 mm; □ 70×70 mm	0.7 mm	0.043 kg	Steel	Quote
ZSG F 1-030	H 26 mm; ■/□ 26×40/60×80 mm	0.7 mm	0.04 kg	Steel	Quote
ZSG F 1-031	H 27 mm; ■/□ 15×50/50×70 mm	0.7 mm	0.03 kg	Steel	Quote
ZSG F 1-032	H 22 mm; ■/□ 30×50/50×70 mm	0.7 mm	0.031 kg	Steel	Quote
ZSG F 1-033	H 28 mm; ■/□ 10×40/50×70 mm	0.7 mm	0.031 kg	Steel	Quote
ZSG F 1-034	H 25 mm; ■/□ 40×40/60×60 mm	0.7 mm	0.035 kg	Steel	Quote
ZSG F 1-035	H 31 mm; ■/□ 40×40/65×65 mm	1 mm	0.055 kg	Steel	Quote
ZSG F 1-036	H 25 mm; ■/□ 20×40/60×60 mm	0.7 mm	0.039 kg	Steel	Quote

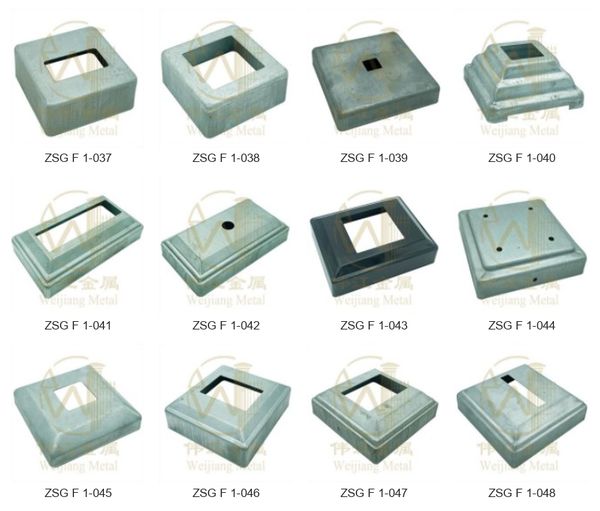

ZSG F 1-037	H 21 mm; ■/□ 16×31/50×50 mm	0.7 mm	0.025 kg	Steel	Quote
ZSG F 1-038	H 20 mm; ■/□ 31×31/50×50 mm	0.7 mm	0.023 kg	Steel	Quote
ZSG F 1-039	H 16 mm; ■/□ 13×13/81×81 mm	1 mm	0.076 kg	Steel	Quote
ZSG F 1-040	H 26 mm; ■/□ 20×20/60×60 mm	0.7 mm	0.032 kg	Steel	Quote
ZSG F 1-041	H 34 mm; ■/□ 12×32/81×151 mm	0.7 mm	0.096 kg	Steel	Quote
ZSG F 1-042	H 33 mm; ●/□ 16/80×150 mm	0.7 mm	0.118 kg	Steel	Quote
ZSG F 1-043	H 32 mm; ■/□ 60×60/100×130 mm	0.7 mm	0.113 kg	Steel	Quote
ZSG F 1-044	H 25 mm; ■/□ (5)×4/100×100 mm	0.7 mm	0.084 kg	Steel	Quote
ZSG F 1-045	H 22 mm; ■/□ 30×30/90×60 mm	1 mm	0.085 kg	Steel	Quote
ZSG F 1-046	H 33 mm; ■/□ 40×60/103×113 mm	0.7 mm	0.098 kg	Steel	Quote
ZSG F 1-047	H 30 mm; ■/□ 40×60/100×100 mm	0.7 mm	0.071 kg	Steel	Quote
ZSG F 1-048	H 30 mm; ■/□ 10×60/100×100 mm	0.7 mm	0.083 kg	Steel	Quote

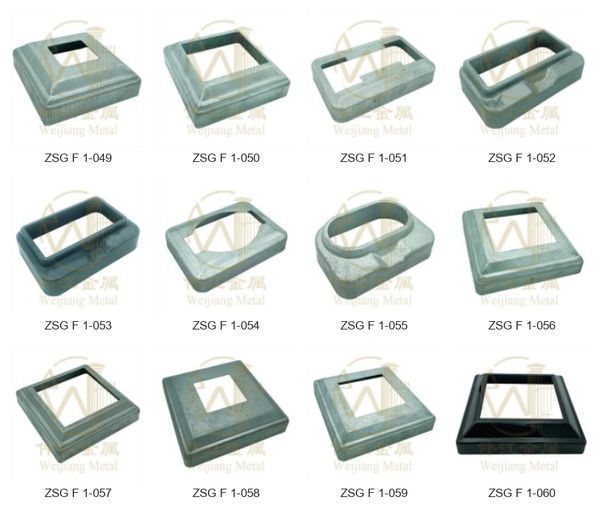

ZSG F 1-049	H 30 mm; ■/□ 40×40/100×100 mm	0.7 mm	0.083 kg	Steel	Quote
ZSG F 1-050	H 30 mm; ■/□ 60×70/100×100 mm	0.7 mm	0.069 kg	Steel	Quote
ZSG F 1-051	H 21 mm; ■/□ 26×103/74×120 mm	0.7 mm	0.055 kg	Steel	Quote
ZSG F 1-052	H 29 mm; ■/□ 40×100/73×125 mm	0.7 mm	0.064 kg	Steel	Quote
ZSG F 1-053	H 30 mm; ■/□ 50×100/85×125 mm	0.7 mm	0.075 kg	Steel	Quote
ZSG F 1-054	H 18 mm; ■/□ 54×81/75×105 mm	0.7 mm	0.041 kg	Steel	Quote
ZSG F 1-055	H 29 mm; ■/□ 40×80/72×103 mm	0.7 mm	0.059 kg	Steel	Quote
ZSG F 1-056	H 28 mm; ■/□ 70×70/120×120 mm	0.7 mm	0.081 kg	Steel	Quote
ZSG F 1-057	H 30 mm; ■/□ 91×91/130×130 mm	0.7 mm	0.098 kg	Steel	Quote
ZSG F 1-058	H 32 mm; ■/□ 60×60/150×150 mm	0.7 mm	0.182 kg	Steel	Quote
ZSG F 1-059	H 31 mm; ■/□ 80×80/150×1505 mm	0.7 mm	0.158 kg	Steel	Quote
ZSG F 1-060	■/□ 96×96/150×150 mm	0.7 mm	0.14 kg	Steel	Quote
ZSG F 1-061	■/□ 40×100/77×127 mm	1.5 mm	0.053 kg	Aluminium	Quote
ZSG F 1-062	■/□ 52×90/105×120 mm	1 mm	0.058 kg	Aluminium	Quote
ZSG F 1-063	■/□ 41×96/135×135 mm	0.7 mm	0.149 kg	Steel	Quote
