Fence and railing hardware · Base covers

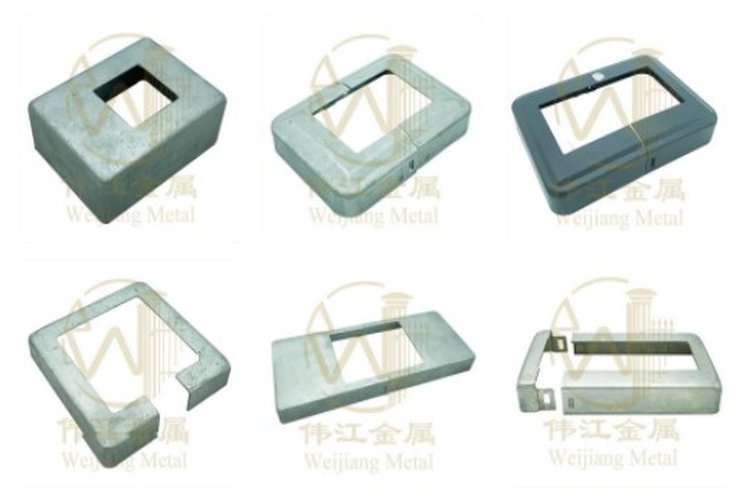

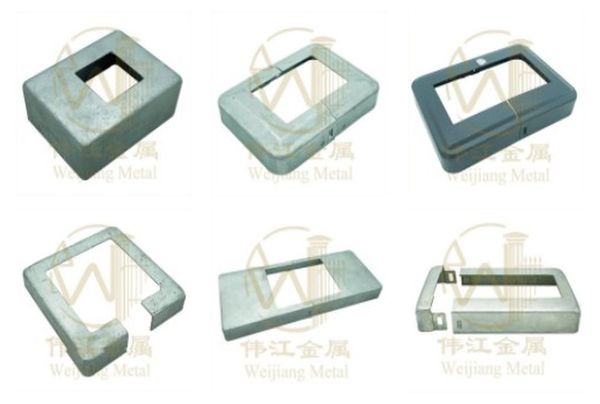

Split post base covers
Product code ZSG FT 1
Two-piece covers that clip around a post that is already installed, to hide the base plate and bolts. In the table, ■ is the post size and □ is the outer size of the cover.
See all 40 models| Material | Steel sheet |
|---|---|
| Thickness | 0.7–1.0 mm |
Have a drawing? Attach it to your quote request.
40 models
| Photo | Model | Size | Thickness | Weight | Quote |
|---|---|---|---|---|---|

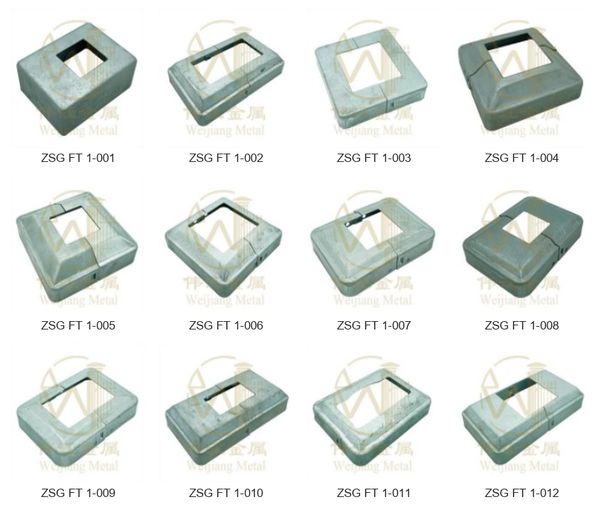

 | ZSG FT 1-001 | H 31 mm; ■/□ 30×30/80×80 mm | 0.7 mm | 0.064 kg | Quote |
 | ZSG FT 1-002 | H 26 mm; ■/□ 40×80/80×130 mm | 0.7 mm | 0.079 kg | Quote |
 | ZSG FT 1-003 | H 19 mm; ■/□ 50×50/90×90 mm | 0.7 mm | 0.056 kg | Quote |
 | ZSG FT 1-004 | H 24 mm; ■/□ 40×40/80×80 mm | 0.7 mm | 0.043 kg | Quote |
 | ZSG FT 1-005 | H 26 mm; ■/□ 30×30/80×80 mm | 0.7 mm | 0.054 kg | Quote |
 | ZSG FT 1-006 | H 24 mm; ■/□ 50×50/90×90 mm | 0.7 mm | 0.051 kg | Quote |
 | ZSG FT 1-007 | H 22 mm; ■/□ 40×40/75×105 mm | 0.7 mm | 0.057 kg | Quote |
 | ZSG FT 1-008 | H 22 mm; ■/□ 32×32/75×105 mm | 0.7 mm | 0.061 kg | Quote |
 | ZSG FT 1-009 | H 21 mm; ■/□ 40×60/75×105 mm | 0.7 mm | 0.055 kg | Quote |
 | ZSG FT 1-010 | H 27 mm; ■/□ 30×50/72×130 mm | 0.7 mm | 0.088 kg | Quote |
 | ZSG FT 1-011 | H 21 mm; ■/□ 42×81/114×85 mm | 0.7 mm | 0.058 kg | Quote |
 | ZSG FT 1-012 | H 27 mm; ■/□ 50×50/73×133 mm | 0.7 mm | 0.079 kg | Quote |

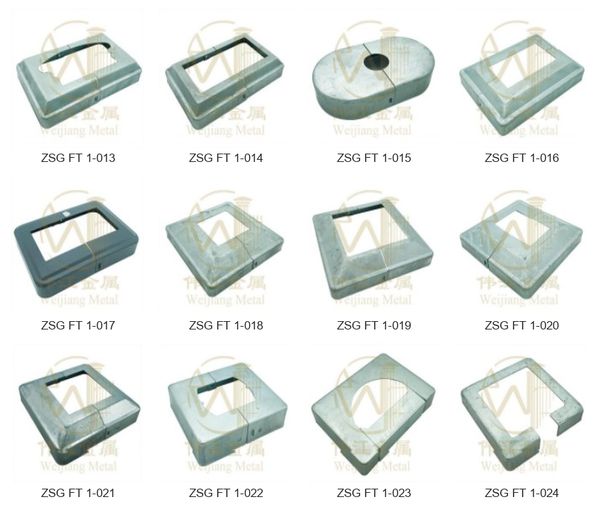

 | ZSG FT 1-013 | H 26 mm; ■/□ 96×45/130×80 mm | 0.7 mm | 0.074 kg | Quote |
 | ZSG FT 1-014 | H 26 mm; ■/□ 45×95/80×130 mm | 0.7 mm | 0.069 kg | Quote |
 | ZSG FT 1-015 | H 26 mm; ●/□ 28/80×140 mm | 0.7 mm | 0.099 kg | Quote |
 | ZSG FT 1-016 | H 30 mm; ■/□ 40×80/100×140 mm | 0.7 mm | 0.099 kg | Quote |
 | ZSG FT 1-017 | H 26 mm; ■/□ 50×100/100×140 mm | 0.7 mm | 0.076 kg | Quote |
 | ZSG FT 1-018 | H 26 mm; ■/□ 50×50/120×120 mm | 0.7 mm | 0.094 kg | Quote |
 | ZSG FT 1-019 | H 25 mm; ■/□ 70×70/120×120 mm | 0.7 mm | 0.081 kg | Quote |
 | ZSG FT 1-020 | H 26 mm; ■/□ 30×60/120×120 mm | 0.7 mm | 0.094 kg | Quote |
 | ZSG FT 1-021 | H 38 mm; ■/□ 80×80/155×155 mm | 0.7 mm | 0.157 kg | Quote |
 | ZSG FT 1-022 | H 24 mm; ■/□ 40×50/79×89 mm | 0.7 mm | 0.06 kg | Quote |
 | ZSG FT 1-023 | H 24 mm; ■/□ 40×70/80×110 mm | 0.7 mm | 0.078 kg | Quote |
 | ZSG FT 1-024 | H 12 mm; ■/□ 48×48/68×68 mm | 1 mm | 0.027 kg | Quote |

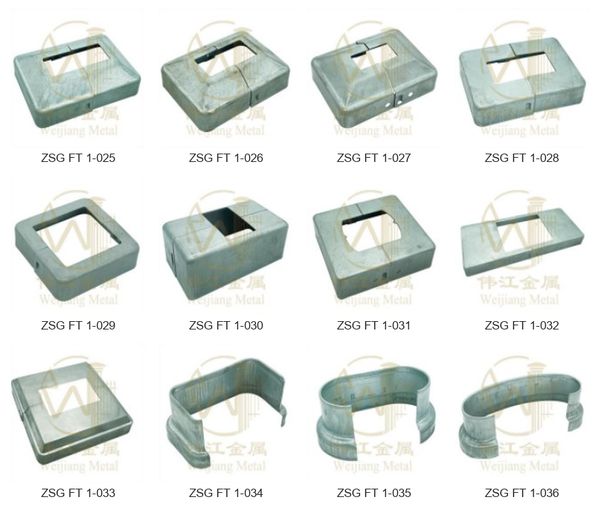

 | ZSG FT 1-025 | H 24 mm; ■/□ 20×50/65×90 mm | 0.7 mm | 0.052 kg | Quote |
 | ZSG FT 1-026 | H 24 mm; ■/□ 20×40/60×80 mm | 0.7 mm | 0.042 kg | Quote |
 | ZSG FT 1-027 | H 23 mm; ■/□ 15×30/60×80 mm | 0.7 mm | 0.043 kg | Quote |
 | ZSG FT 1-028 | H 19 mm; ■/□ 25×50/65×90 mm | 0.7 mm | 0.047 kg | Quote |
 | ZSG FT 1-029 | H 14 mm; ■/□ 40×40/60×60 mm | 0.7 mm | 0.022 kg | Quote |
 | ZSG FT 1-030 | H 42 mm; ■/□ 30×50/60×110 mm | 1.0 mm | 0.125 kg | Quote |
 | ZSG FT 1-031 | H 24 mm; ■/□ 40×50/80×90 mm | 0.7 mm | 0.061 kg | Quote |
 | ZSG FT 1-032 | H 34 mm; ■/□ 85×105/100×245 mm | 0.7 mm | 0.152 kg | Quote |
 | ZSG FT 1-033 | H 35 mm; ■/□ 63×103/180×180 mm | 0.7 mm | 0.237 kg | Quote |
 | ZSG FT 1-034 | H 40 mm; ■/□ 47×85/58×98 mm | 0.7 mm | 0.043 kg | Quote |
 | ZSG FT 1-035 | H 39 mm; ■/□ 40×80/55×95 mm | 0.7 mm | 0.043 kg | Quote |
 | ZSG FT 1-036 | H 37 mm; ■/□ 35×110/48×125 mm | 0.7 mm | 0.045 kg | Quote |

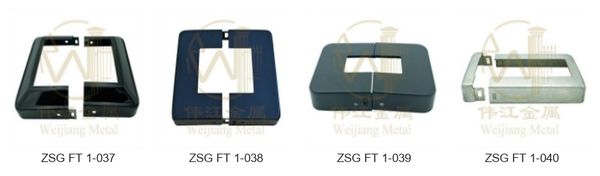

 | ZSG FT 1-037 | ■/□ 90×90/140×140 mm | 1 mm | 0.147 kg | Quote |
 | ZSG FT 1-038 | ■/□ 95×95/150×150 mm | 0.7 mm | 0.14 kg | Quote |
 | ZSG FT 1-039 | ■/□ 50×50/100×100 mm | 0.7 mm | 0.078 kg | Quote |
 | ZSG FT 1-040 | ■/□ 25×50/74×104 mm | 0.7 mm | 0.065 kg | Quote |
