Home/Products/Fence and railing hardware/Base covers

Fence and railing hardware · Base covers

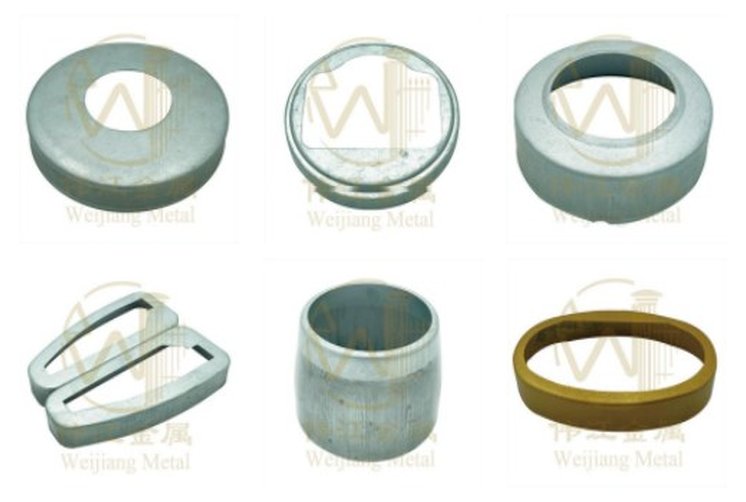

Round and oval base covers

Name: Round and oval base covers
Brand: EastCasting
SKU: ZSG Y 1

Product code ZSG Y 1

Round, oval and D-shaped covers for the foot of tube posts and handrail supports, outer sizes up to Φ206 mm. In the table, ● is the opening and ○ is the outer diameter.

See all 33 models

Material	Steel sheet
Thickness	0.3–1.5 mm

Request a quote WhatsApp

Have a drawing? Attach it to your quote request.

33 models

Model	Size	Thickness	Weight	Quote

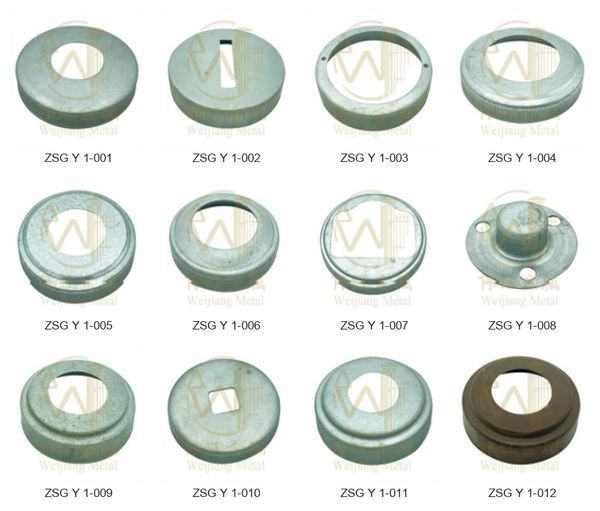

ZSG Y 1-001	H 19 mm; ●/○ 51/115 mm	1.2 mm	0.132 kg	Quote
ZSG Y 1-002	H 21 mm; ■/○ 12×62/104 mm	0.7 mm	0.068 kg	Quote
ZSG Y 1-003	H 20 mm; ●/○ 85/104 mm	0.7 mm	0.049 kg	Quote
ZSG Y 1-004	H 18 mm; ●/○ 62/103 mm	0.7 mm	0.027 kg	Quote
ZSG Y 1-005	H 19 mm; ●/○ 50/103 mm	0.7 mm	0.035 kg	Quote
ZSG Y 1-006	H 21 mm; ●/○ 50/84 mm	1.5 mm	0.108 kg	Quote
ZSG Y 1-007	H 11 mm; ■/○ 51×63/82 mm	0.7 mm	0.017 kg	Quote
ZSG Y 1-008	H 18 mm; ●/○ 26/63 mm	1.2 mm	0.035 kg	Quote
ZSG Y 1-009	H 17 mm; ●/○ 33/65 mm	0.7 mm	0.02 kg	Quote
ZSG Y 1-010	H 10 mm; ■/○ 15×15/63 mm	1 mm	0.032 kg	Quote
ZSG Y 1-011	H 17 mm; ●/○ 28/65 mm	0.7 mm	0.021 kg	Quote
ZSG Y 1-012	H 19 mm; ●/○ 33/65 mm	0.7 mm	0.021 kg	Quote

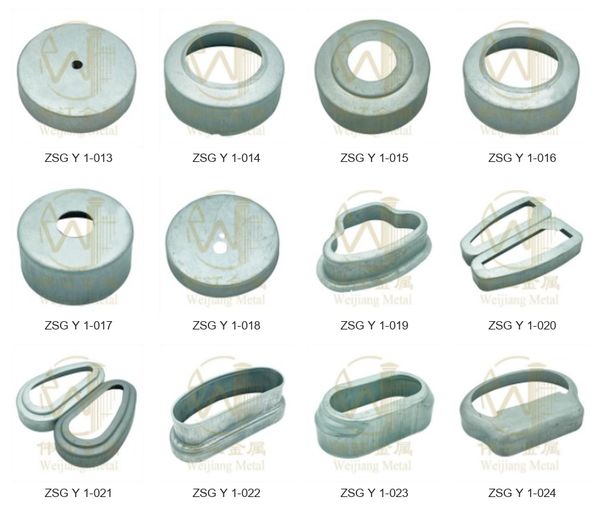

ZSG Y 1-013	H 12 mm; ●/○ 5/55 mm	0.7 mm	0.016 kg	Quote
ZSG Y 1-014	H 24 mm; ●/○ 50/79 mm	0.7 mm	0.036 kg	Quote
ZSG Y 1-015	H 24 mm; ●/○ 32/79 mm	0.7 mm	0.04 kg	Quote
ZSG Y 1-016	H 24 mm; ●/○ 50/78 mm	0.7 mm	0.036 kg	Quote
ZSG Y 1-017	H 29 mm; ●/○ 23/72 mm	1.2 mm	0.086 kg	Quote
ZSG Y 1-018	H 11 mm; ●/●/○ 4/9/70 mm	0.7 mm	0.03 kg	Quote
ZSG Y 1-019	H 23 mm; ■/□ 43×73/55×85 mm	0.7 mm	0.032 kg	Quote
ZSG Y 1-020	H 28 mm; ■/□ 163×49/83×159 mm	0.7 mm	0.105 kg	Quote
ZSG Y 1-021	H 23 mm; ■/□ 43×109/82×147 mm	0.7 mm	0.072 kg	Quote
ZSG Y 1-022	H 38 mm; ■/□ 41×111/55×125 mm	0.7 mm	0.062 kg	Quote
ZSG Y 1-023	H 35 mm; ■/□ 40×95/65×125 mm	0.7 mm	0.059 kg	Quote
ZSG Y 1-024	H 19 mm; ■/□ 45×95/84×115 mm	0.7 mm	0.041 kg	Quote

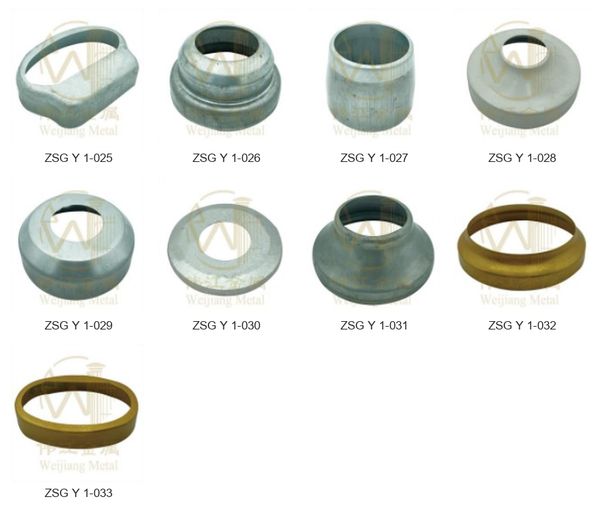

ZSG Y 1-025	H 24 mm; ■/□ 42×100/82×115 mm	0.7 mm	0.049 kg	Quote
ZSG Y 1-026	H 65 mm; ●/○ 80/150 mm	1.2 mm	0.293 kg	Quote
ZSG Y 1-027	H 81 mm; ●/○ 91/118 mm	1 mm	0.158 kg	Quote
ZSG Y 1-028	H 68 mm; ●/○ 75/200 mm	1.2 mm	0.299 kg	Quote
ZSG Y 1-029	H 60 mm; ●/○ 92/206 mm	0.7 mm	0.276 kg	Quote
ZSG Y 1-030	●/○ 19/42 mm	0.3 mm	0.003 kg	Quote
ZSG Y 1-031	H 56 mm; ●/○ 76/143 mm	0.7 mm	0.101 kg	Quote
ZSG Y 1-032	●/○ 90/105 mm	0.7 mm	0.039 kg	Quote
ZSG Y 1-033	■/□ 44×85/60×96 mm	0.7 mm	0.031 kg	Quote

Round and oval base covers

33 models
